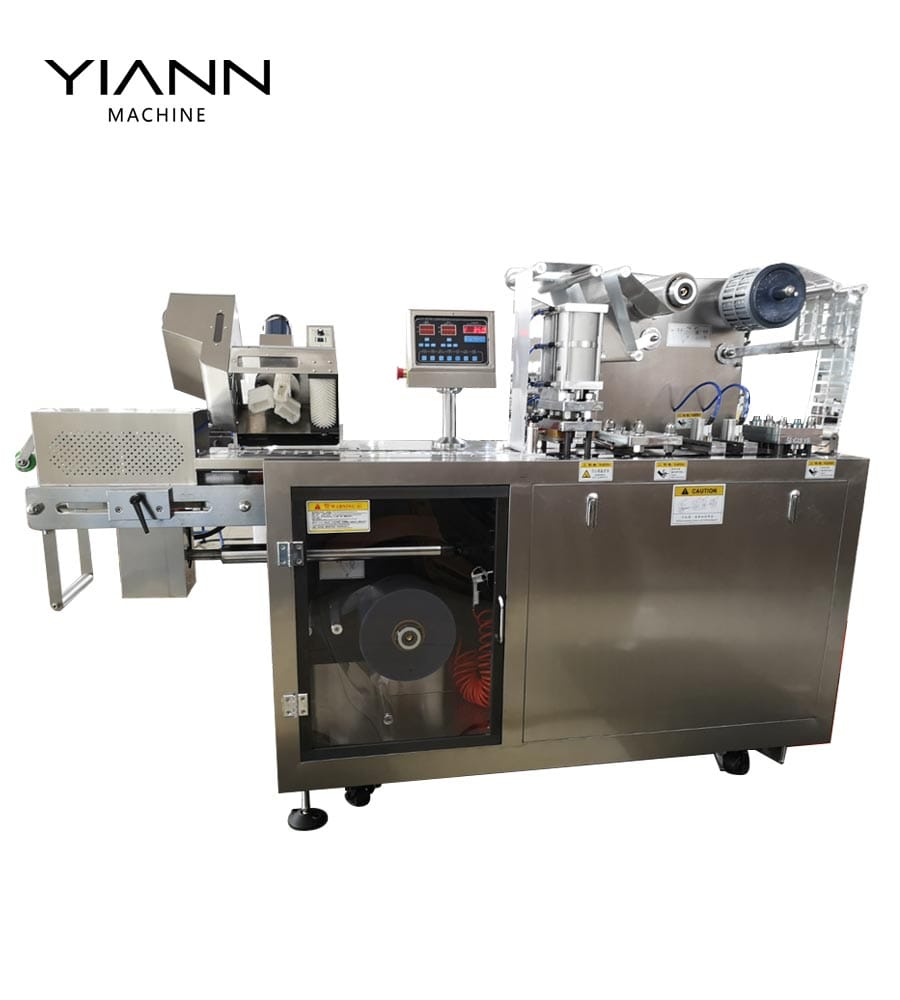

DPP-150 Blister Packaging machine
$13,999.00

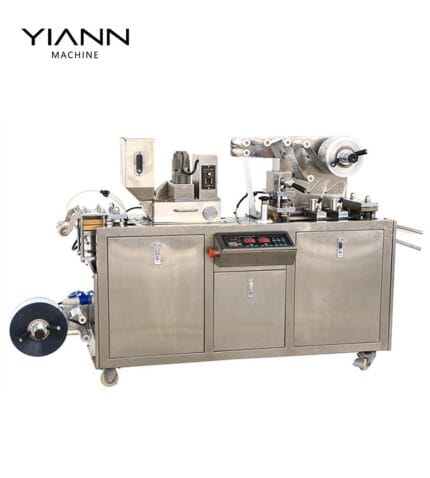

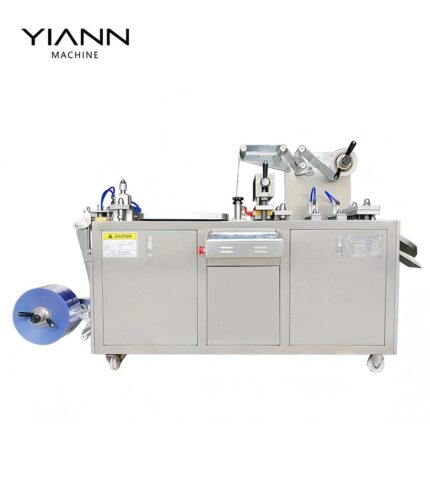

Blister packing machine DPP-80 Automatic Aluminum Foil Packing Machine,For Capsule,Pill,Coffee,Alcohol,Honey,Oil

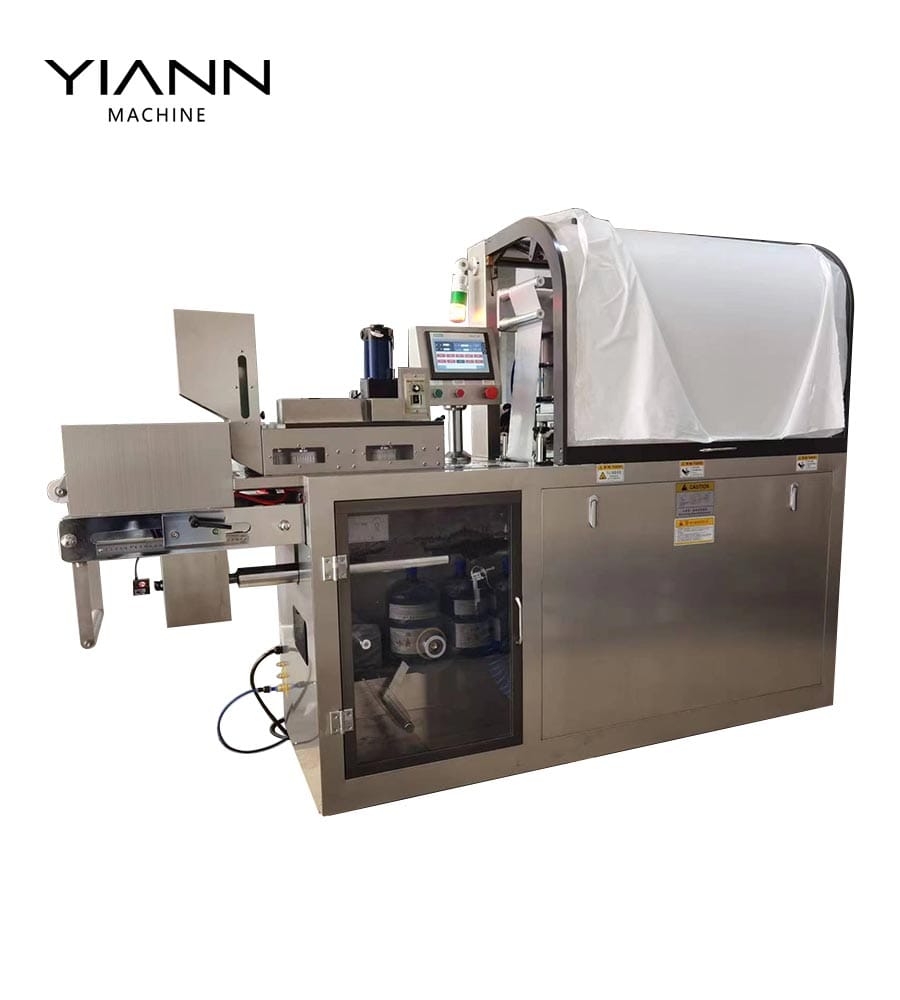

DPP-150 flat type Al/PVC & Alu/Alu blister packaging machine
Technical specifications:
冲裁次数 Punches frequency | 10∽33（次/分）液体20次/分 10-35times/min |
生产能力 Production capacity | 1200∽4200（一冲两版）（版/小时） 1200-4200plates/hour( two plates one time) |
最大成型面积及深度 Max. forming area and depth | 130×100(标准深度≤15mm）最大深度26mm （150的机器最大板块是145x100 但是两边不能极限） 130x100(standard thickness≤15mm) Max. depth 26mm |
行程范围 Stroke range | 50∽120mm（可按用户要求设计） 50-120mm( can be designed as per user’s required) |
标准版块 Standard plate size | 80×57mm（可按用户要求设计） 80x57mm ( can be designed as per user’s required) |
洁净压缩空气 Clean compressed air | 0.4∽0.6Mpa |
耗气量 Air compressed capacity | （空压机）≥0.3m3/min |
电源总功率 Total power supply | 380V 50HZ 3.8kw |
主电机功率 Main power | 1.5KW |
PVC硬片 PVC hard film | （0.15∽0.5）×150mm |
PTP铝箔 PTP Aluminum film | （0.02∽0.035）×150mm |
透析纸 Dialysis paper | （0.02∽0.035）×150mm |
模具冷却 Mould cooling | 自来水或循环水 Tap water or recycling water |
外形尺寸 Overall dimension | 2315×635×1405mm（L×W×H） |
整机净重 Net Weight | 820KG |
毛重 Gross Weight | 890KG |
外包装箱尺寸 Overall Dimension | 2500×800×1780mm（L×W×H） |
噪音 Noise | <75分贝 <75dB |
Features:
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device (Omron Sensor) for number of medicines according to the user’s requirement. It adopts imported frequency inverter
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
| Weight |
890KG |
|---|---|
| Overall Dimension |
2315×635×1405mm（L×W×H） |
| Punch frequency |
10-35 times/min |
| Production capacity |
1200-4200plates/hour( two plates one time) |
